Adapters Inlet, Inner Joint, 90°

Hot

Adapters Inlet, Inner Joint, 90°

Stock: In Stock
Model: 1001-0005-00

$16.63

Available Options

Ground Joint

Quantity

Add to Cart

Need a custom configuration? Send an enquiry

Tags: Adapters Inlet , Outer Joint

Description
Reviews

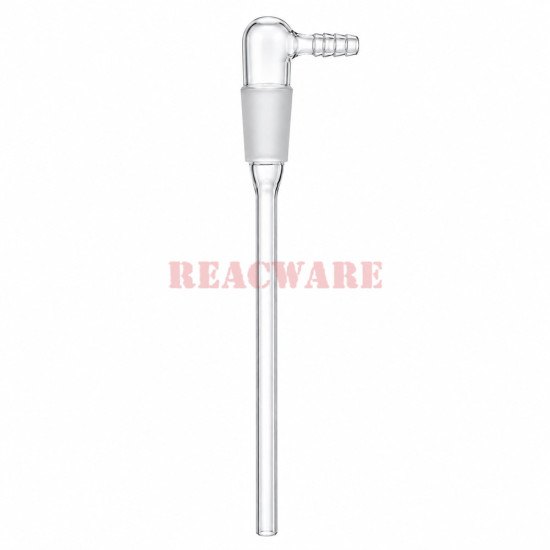

Proglass Adapters Inlet, Inner Joint,90°

Made by hand blower

Ground joint:

14/20 Ground joint

19/22 Ground joint

24/40 Ground joint

29/42 Ground joint

Allows introduction of reactants below the interior surface. Hose connection has a O.D. of 10 mm at the largest serration and is bent downward at a 90º angle to the inner joint.the length below the joint is 200 mm

If you need any other size or other Ground joints,please contact us

Made from G3.3 Borosilicate Glass

Specifications & configuration

Model	1001-0005-00
Manufacturer	REACWARE
Ground Joint options	14/20 · 19/22 · 24/40 · 29/42
14/20	75 mm Length Below Joint
19/22	75 mm Length Below Joint
24/40	200 mm Length Below Joint
29/42	200 mm Length Below Joint
Material	G3.3 borosilicate glass
Annealing point	560 °C
Softening point	820 °C
Linear expansion coefficient	33 × 10⁻⁷ / °C

Select the configuration above to check the available combination and price.

Open enquiry list ↗

$16.63

Custom glassware
Specifications

Reacware has the ability to custom fabricate glassware to your unique specifications. We specialize in custom: Chromatography Columns Flasks Manifolds Condensers Distillation apparatus Funnels Reaction Vessels and many more...... Reacware can also custom fabricate flat glass items. Borosilicate or quartz plate glass can be cut and ground to virtually any shape. Drilling, slotting or edge grinding is also offered.
