Distilling Heads, Short-Path, Improved, with Vigreux

Distilling Heads, Short-Path, Improved, with Vigreux
Distilling Heads, Short-Path, Improved, with Vigreux
  • Stock: In Stock
  • Model: 1053-1004-00
$81.97

Available Options

Add to Cart
Need a custom configuration? Send an enquiry
Tags: Distilling Heads , Short Path , Improved , with Vigreux

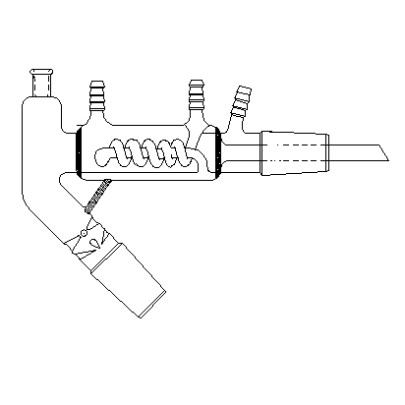

with the condenser being a combination of a cold coil and Liebig. Water flows into hose connection “A” through the coil and exits the outer jacket through hose connection “B”. Head is excellent for use when distilling medium to high boiling point solvents. Top outer joint is a 10/18 for use with a 2” immersion thermometer. Available with or without Vigreux indentations to further improve efficiency.

If you need any other size or other Ground joints,please contact us


Made from G3.3 Borosilicate Glass

Write a review

Note: HTML is not translated!
Rating
Bad Good

Specifications & configuration

Model1053-1004-00
ManufacturerREACWARE
Ground Joint options14/20 · 19/22 · 24/40
Thermometer Joint options10/18
MaterialG3.3 borosilicate glass
Annealing point560 °C
Softening point820 °C
Linear expansion coefficient33 × 10⁻⁷ / °C

Select the configuration above to check the available combination and price.

Open enquiry list ↗
$81.97
Reacware has the ability to custom fabricate glassware to your unique specifications. We specialize in custom: Chromatography Columns Flasks Manifolds Condensers Distillation apparatus Funnels Reaction Vessels and many more...... Reacware can also custom fabricate flat glass items. Borosilicate or quartz plate glass can be cut and ground to virtually any shape. Drilling, slotting or edge grinding is also offered.
