Adapters Vacuum Take-Off 105°,with 100mm inlet tube

Adapters Vacuum Take-Off 105°,with 100mm inlet tube
Reacware has the ability to custom fabricate glassware to your unique specifications. We specialize in custom: Chromatography Columns Flasks Manifolds Condensers Distillation apparatus Funnels Reaction Vessels and many more...... Reacware can also custom fabricate flat glass items. Borosilicate or quartz plate glass can be cut and ground to virtually any shape. Drilling, slotting or edge grinding is also offered.
Ground Joint
14/20 Ground joint is 14/20
19/22 Ground joint is 19/22
24/40 Ground joint is 24/40

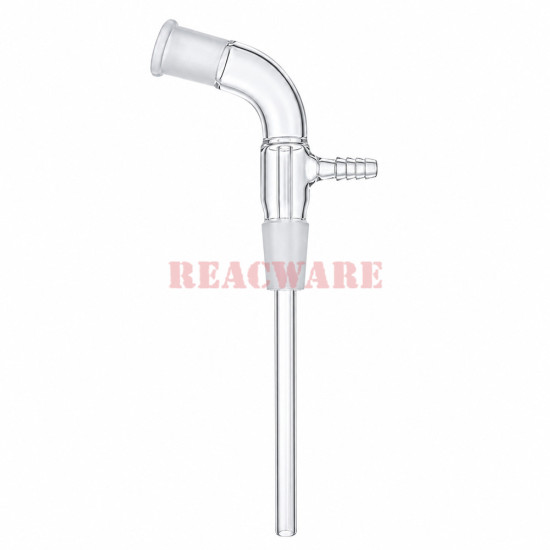

Adapters Vacuum Take-Off 105°,with 100mm inlet tube

With standard taper top outer and lower inner joints with sealed in drip tip. Adapter is bent at a 105º angle for use in vacuum distillation. Serrated hose connection has an O.D. of 10mm at the largest serration for connection to vacuum source.with 100mm inlet tube

Available Ground joint:

14/20 Ground joint

19/22 Ground joint

24/40 Ground joint


If you need any other size or standard taper,please contact with us by the leave an message


Be Made From G3.3 Borosilicate Glass

Annealing Point ------560℃

Linear Coefficient of Expansion------ 33×10-7/℃

Softening Point------820℃

If you need any Customized laboratory glassware or the instrument,

Please contact with us


Be Made From G3.3 Borosilicate Glass

Annealing Point ------560℃

Linear Coefficient of Expansion------ 32×10-7/℃

Softening Point------820℃

Write a review

Note: HTML is not translated!
Bad Good
Captcha
  • Stock: In Stock
  • Model: 1029-1014-00
190 samples sold
$30.29
Ex Tax: $30.29
