Name: 1 L Short-Path Distillation Glassware Kit with Cold Trap
Brand: REACWARE
Price: 426.49 USD
Availability: InStock

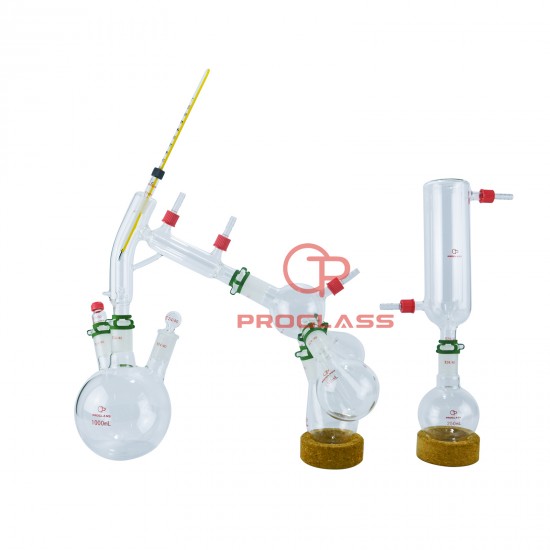

1 L Short-Path Distillation Glassware Kit with Cold Trap

Stock: In Stock
Model: 1054-1004-00

$426.49

Quantity

Add to Cart

Need a custom configuration? Send an enquiry

Tags: Short Path 1 L Chemistry Lab Glassware Distillation Kit with Cold Trap kit

Description
Reviews

Customization is available on request

Hand-blown

Made of borosilicate glass 3.3

Customer's Logo would be available for bulk order

Description:

This is a set of 24/40 glassware for distillation in lab. With a 14/20 joint to accept thermometers calibrated for 75 mm immersion.

The distributing adapter consists of a single 24/40 outer joint and three 24/40 inner joints to accept three 150 mL Kjeldahl flask receivers.

The receivers are held in place with plastic clamps. Including:

1.Distillation head, short path with 24/40 joint, with a 14/20 outer joint to accept thermometers calibrated for 75 mm immersion.one piece design for easy set up.

with removable hose connector.

2.Distributing adapter, distillation receiver, with the24/40 outer and inner joints at 135 degree angle.

with removable hose connector

3.Kjeldahl flask receivers with24/40 joint 3 pcs

4.1000 mL 3 neck flask, heavy wall design, with 24/40 joint, 1 pcs.

5.plastic joint clip, 24/40, for standard taper joint.(Pack of 10)

6.thermometer adapter, 24/40 joint. 1pcs

7.thermometer adapter, 14/20 joint. 1pcs

8.65 mm Outer diameter Cold Trap,24/40.1pcs

9.250 mL receiving flask,24/40.1pcs

10.Bleeding tube.2pcs.

11.Penny-Head Hollow Glass Stopper.1pcs

12.Yellow back Thermometer.1pcs

13.All of the stands in the picture

If you need any other size or other Ground joints,please contact us

Made from G3.3 Borosilicate Glass

Specifications & configuration

Model	1054-1004-00
Manufacturer	REACWARE
Material (from Product Description)	G3.3 Borosilicate Glass
Material	G3.3 borosilicate glass
Annealing point	560 °C
Softening point	820 °C
Linear expansion coefficient	33 × 10⁻⁷ / °C
Wall construction	Heavy wall; thickness not specified
Manufacturing process	Hand-blown glass

Select the configuration above to check the available combination and price.

Open enquiry list ↗

$426.49

Custom glassware
Specifications

Reacware has the ability to custom fabricate glassware to your unique specifications. We specialize in custom: Chromatography Columns Flasks Manifolds Condensers Distillation apparatus Funnels Reaction Vessels and many more...... Reacware can also custom fabricate flat glass items. Borosilicate or quartz plate glass can be cut and ground to virtually any shape. Drilling, slotting or edge grinding is also offered.
