Condensers, Graham, Gas Scrubber, with Removable Connections

Condensers, Graham, Gas Scrubber, with Removable Connections
Condensers, Graham, Gas Scrubber, with Removable Connections
  • Stock: In Stock
  • Model: 1008-1002-00
$96.23

Available Options

Add to Cart
Need a custom configuration? Send an enquiry
Tags: Condensers , Graham , Gas Scrubber , with removable Connections

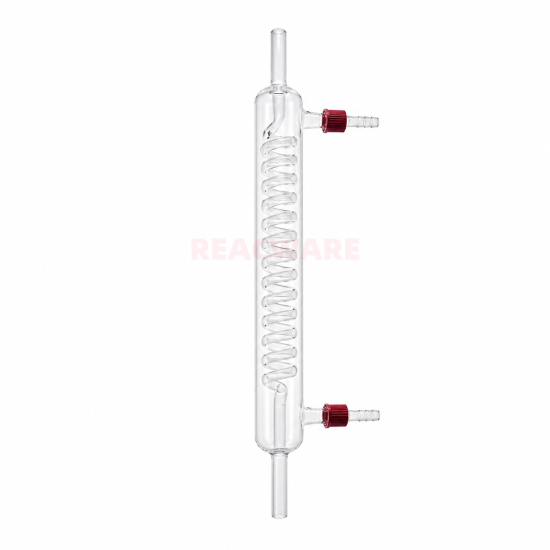

Condenser for use in cooling of the scrubbing fluid. Graham coil type condenser having 1/2” Swagelok tubing .. Hose connections have 9 mm OD small serration and a 10 mm OD large serration.

With two GL14 removable connections

If you need other dimensions or ground joint,please contact us by leaving a message


Made from G3.3 Borosilicate Glass

Write a review

Note: HTML is not translated!
Rating
Bad Good

Specifications & configuration

Model1008-1002-00
ManufacturerREACWARE
Body Length options300 mm · 400 mm · 500 mm · 600 mm
MaterialG3.3 borosilicate glass
Annealing point560 °C
Softening point820 °C
Linear expansion coefficient32 × 10⁻⁷ / °C

Select the configuration above to check the available combination and price.

Open enquiry list ↗
$96.23
Reacware has the ability to custom fabricate glassware to your unique specifications. We specialize in custom: Chromatography Columns Flasks Manifolds Condensers Distillation apparatus Funnels Reaction Vessels and many more...... Reacware can also custom fabricate flat glass items. Borosilicate or quartz plate glass can be cut and ground to virtually any shape. Drilling, slotting or edge grinding is also offered.
