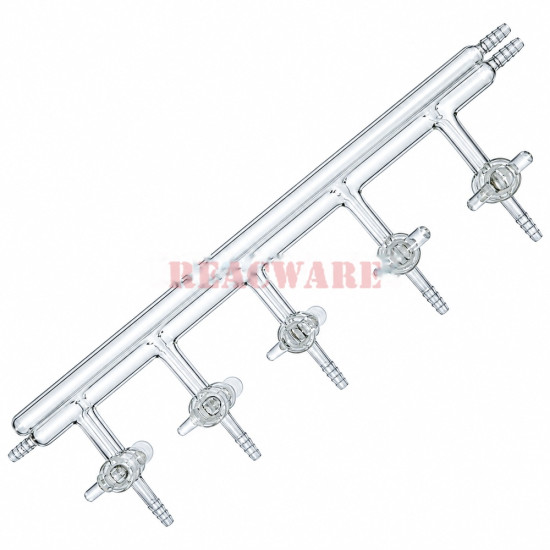

Manifold, Vacuum/Inert Gas, High-Vacuum Hollow Glass Stopcocks

Manifold, Vacuum/Inert Gas, High-Vacuum Hollow Glass Stopcocks
Manifold, Vacuum/Inert Gas, High-Vacuum Hollow Glass Stopcocks
  • Stock: In Stock
  • Model: 1042-1001-00
$351.65

Available Options

Add to Cart
Need a custom configuration? Send an enquiry
Tags: Manifold , Vacuum/Inert Gas , high vacuum hollow glass stopcocks
Any size Customize would be available,Please contact us for your request about the Manifold

With 4 mm double oblique, high vacuum hollow glass stopcocks precision ground with corresponding numbers on barrel and plug. Upper/Back vacuum chambers on stopcock are evacuated with a separate hole in the plug in order to hold the plug in the stopcock barrels. Beams are 22 mm O.D. with front-left-right and rear-left- right 10 mm hose connections. Distance between stopcocks is 75 mm center to center.


Made from G3.3 Borosilicate Glass

Write a review

Note: HTML is not translated!
Rating
Bad Good

Specifications & configuration

Model1042-1001-00
ManufacturerREACWARE
Number of Ports options3 · 4 · 5
MaterialG3.3 borosilicate glass
Annealing point560 °C
Softening point820 °C
Linear expansion coefficient33 × 10⁻⁷ / °C

Select the configuration above to check the available combination and price.

Open enquiry list ↗
$351.65
Reacware has the ability to custom fabricate glassware to your unique specifications. We specialize in custom: Chromatography Columns Flasks Manifolds Condensers Distillation apparatus Funnels Reaction Vessels and many more...... Reacware can also custom fabricate flat glass items. Borosilicate or quartz plate glass can be cut and ground to virtually any shape. Drilling, slotting or edge grinding is also offered.
