Jacket Short-Path Distillation Head for 10L-20L

Jacket Short-Path Distillation Head for 10L-20L
Jacket Short-Path Distillation Head for 10L-20L
Jacket Short-Path Distillation Head for 10L-20L
Jacket Short-Path Distillation Head for 10L-20L
Jacket Short-Path Distillation Head for 10L-20L
  • Stock: In Stock
  • Model: 1053-1013-00
$307.69
Add to Cart
Need a custom configuration? Send an enquiry
Tags: Jacket Short path Distillation Head for 10L-20L

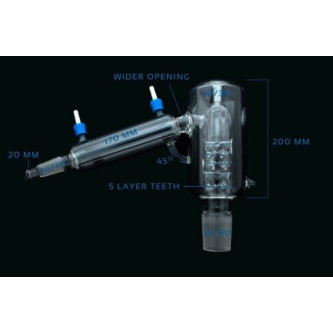

Proglass large-scale vacuum jacketed short-path distillation head for the fractional separation of individual components. This unit comes with large 45/50 diameter joints for higher throughput. Optimal for a 10 L round bottom boiling flask. This glassware comes with a straight head and built-in Vigreux column with five layers of teeth for maximum theoretical plates of separation. Everything about this head has been optimized from the length and diameter of the condenser to the height of the fractionating column.


Made from G3.3 Borosilicate Glass

Write a review

Note: HTML is not translated!
Rating
Bad Good

Specifications & configuration

Model1053-1013-00
ManufacturerREACWARE
Material (from Product Description)G3.3 Borosilicate Glass
MaterialG3.3 borosilicate glass
Annealing point560 °C
Softening point820 °C
Linear expansion coefficient32 × 10⁻⁷ / °C

Select the configuration above to check the available combination and price.

Open enquiry list ↗
$307.69
Reacware has the ability to custom fabricate glassware to your unique specifications. We specialize in custom: Chromatography Columns Flasks Manifolds Condensers Distillation apparatus Funnels Reaction Vessels and many more...... Reacware can also custom fabricate flat glass items. Borosilicate or quartz plate glass can be cut and ground to virtually any shape. Drilling, slotting or edge grinding is also offered.
