Name: Short-Path 20 L Whole Distillation Kit
Brand: REACWARE
Price: 1496.00 USD
Availability: InStock

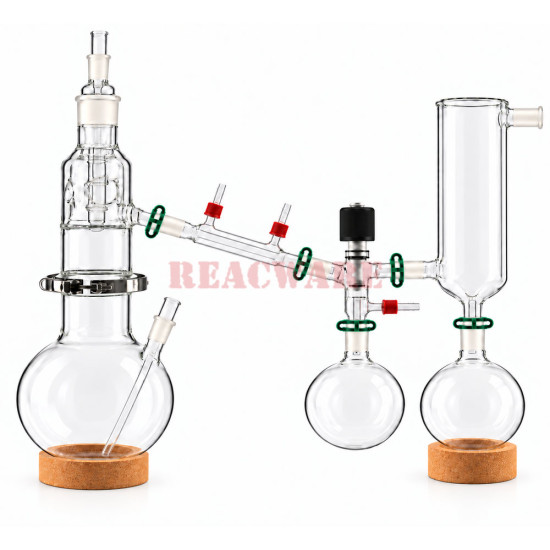

Short-Path 20 L Whole Distillation Kit

Stock: In Stock
Model: 1054-1002-00

$1,496.00

Quantity

Add to Cart

Need a custom configuration? Send an enquiry

Tags: Short Path 20 L Whole Distillation Kit

Description
Reviews

Customization is available on request

Hand-blown

Made of borosilicate glass 3.3

Customer's Logo would be available for bulk order

Description:

This is a set of 24/40 glassware for distillation in lab. With a 24/40 joint to accept thermometers calibrated for 200 mm immersion.

The distributing adapter consists of a single 24/40 outer joint and three 24/40 inner joints to accept three 1000 mL Round bottom flask receivers.

The receivers are held in place with plastic clamps. Including:

1.Distillation head, short path with Flange, with a 24/40 outer joint to accept thermometers calibrated for 200 mm immersion.one piece design for easy set up.

with removable hose connector.

2.55/50 distillation Column 1pcs

3.Round Bottom flask receivers with 24/40 joint 3 pcs

4.20000 mL 2 necks flask, heavy wall design, with 24/40 joint, 1 pcs.

5.Cold Trap 24/40,150 mm outer diameter with removable hose connector,1pcs

6.Improved Glass Vacuum Cut Off Adapter Joints 24/40 with GL14 , Vacuum Cow Adapter 75 Degree 1pcs

7.2000 mL Receiving Flask,24/40,2pcs

8.thermometer adapter 200 mm length, 24/40 joint. 2pcs

9.Bleeding tube.2pcs.

10.Penny-Head Hollow Glass Stopper.1pcs

11.Accuracy Yellow back Thermometer.1pcs

12.All of the clamps and stand in the picture

Made from G3.3 Borosilicate Glass

Specifications & configuration

Model	1054-1002-00
Manufacturer	REACWARE
Material (from Product Description)	G3.3 Borosilicate Glass
Material	G3.3 borosilicate glass
Annealing point	560 °C
Softening point	820 °C
Linear expansion coefficient	33 × 10⁻⁷ / °C
Wall construction	Heavy wall; thickness not specified
Manufacturing process	Hand-blown glass

Select the configuration above to check the available combination and price.

Open enquiry list ↗

$1,496.00

Custom glassware
Specifications

Reacware has the ability to custom fabricate glassware to your unique specifications. We specialize in custom: Chromatography Columns Flasks Manifolds Condensers Distillation apparatus Funnels Reaction Vessels and many more...... Reacware can also custom fabricate flat glass items. Borosilicate or quartz plate glass can be cut and ground to virtually any shape. Drilling, slotting or edge grinding is also offered.
