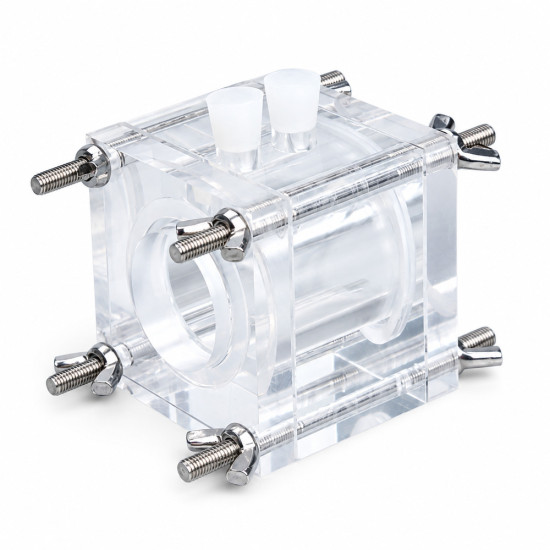

Zinc Air Battery Test Device Metal Fuel Cell Reactor Secondary Zinc Air Electrolyzer

Features of the device: 1: use plexiglass as the main material, its characteristics are alkali resistance, high physical strength, not easy to stick oil or wear.

2: transparent, easy to observe, beautiful and generous, it is an ideal configuration for experimental testing.

3: easy to assemble and disassemble. The reaction area is divided into 1, 2, 3 and 4.5 cm², which can be customized if there are other requirements.

Product parameters:

Mold material: PMMA

Color: transparent

Width: 7 cm

Height: 6 cm

Distance between positive and negative poles: 1.4 cm

Sealing performance: no leakage

Reaction area: 1 cm², 2 cm², 3 cm², 4.5 cm²

Maximum liquid loading: 6.5 g

The reaction area of cathode is 1 cm², but in order to increase the amount of liquid in the device, the reaction area on one side of anode / zinc electrode is appropriately expanded (about 5.3 cm²), and this adjustment will not affect the performance test of cathode itself. Please contact us before purchase if you need the corresponding area of anode and cathode.
