Vacuum Pore Plate funnel Filter Kit With the MINI PRO Pump

Vacuum Pore Plate funnel Filter Kit With the MINI PRO Pump

Glassware kit include the 1000mL Erlenmyer Flask and the 350mL Pore Plate funnel

     This is a Mini Pump which can provide the vacuum and the pressure. It can be used in the laboratory and the electric factory and any occasion. It could be used for vacuum filtration, vacuum distillation and pressure distillation. It also could be used to do the vacuum for the clothes package or other use which need the vacuum or the pressure. It can do the charge, when you remove the power adapter, it can still work two hours. So, it can be used outside of the house. We provide the OEM service for this Pump, if you could place the bulk order, we can print your Logo on the pump and the package.

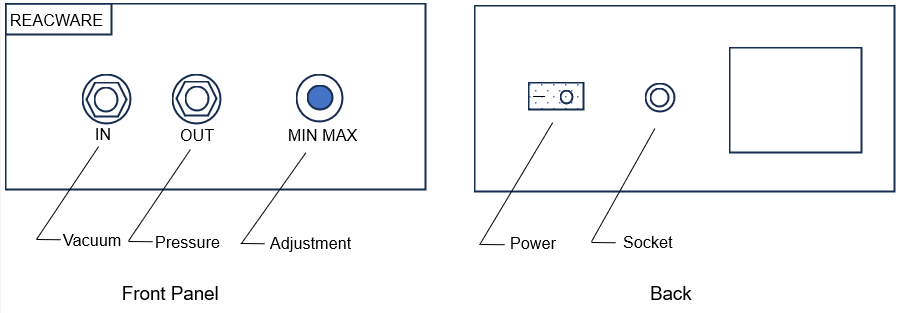

 Structures：

    Specification

Input: AC 110V-240V

Frequency: 50/60HZ

Power: 12W

NO-loading Flow: ≥5L/Min

Max Vacuum: ≥ 58 Kpa

Max Pressure: ≥100 KPa

Noise: ≤ 60 dB

 Package includes:

1 Pump 1pcs

2 Silicon tube inner diameter 4mm,100mm length,1pcs

3 Silicon tube inner diameter 6mm,500mm Length 1pcs

4 Silicon tube inner diameter 8mm,100mm Length 1pcs

5 Silicon tube inner diameter 10mm,100mm Length 1pcs

6 Silicon tube inner diameter 12mm,100mm Length 1pcs

7 Plastic Connector adapter 5.6mm to 4.8mm,1pcs

8 Plastic Connector adapter 5.6mm to 7.9mm,1pcs

9 Plastic Connector adapter 5.6mm to 9.5mm,1pcs

10 Plastic Connector adapter 5.6mm to 11.1mm,1pcs

11 Power adapter 110V~240V two feet plug,1pcs

12 Instructions,1pcs

USAGE

 Open and Adjustment

Plug the power adapter into the socket in the back of the pump. Open the power to -，adjust the knob to the clockwise in the front panel, you can adjust the speed of the pump.

 Turn off the knob to anticlockwise, it will power off. Then take off the power in the back panel to O, it will cut off the power of the whole machine.

 Charge

Plug the power adapter into the socket, it will be in the charge, you should not open the power and the knob. When it is in charge, the red light will be power on. When the green light is on, the machine is full power, you had better do the charge no more 2 hours.

SAFETY NOTIFICATIONS

 It can be do the vacuum and pressure, but it prohibits use these two functions at the same time.

 Charging time should not exceed 2 hours.

 Please use the power adapter from us.

 Prohibit use this pump to do the liquid.

 When you use it to do absorb the corrosion gas, please use the buffer bottle to leach the corrosion gas to protect the pump.

 When the pump is hot big noise smoking and other abnormal state, please take off it right now.

 When it needs repairing, please contact the seller to deal with it.

PROBLEMS

 If the product cannot be turned on. Please check if the power adapter plug matches the socket on the back of the device properly. For other situations, please contact the seller for assistance.

 If the vacuum and pressure hose connectors will be loose，please turn the nut tightly.

 If the product noise is too loud or there is abnormal noise, please contact the seller.

 If the vacuum or the pressure is too low, please contact the seller.

AFTER SALES

 One year warranty.

 Due to the extraction of liquids, especially corrosion liquids, it cannot be covered by warranty.

 If the product malfunction cannot be resolved by the buyer, please contact the seller.

 We only provide the replacement for the machine which has been sold to the foreign. We don’t do the repairing in the foreign.
