FMD-B | MOLECULAR DISTILLATION
- Stock: In Stock
- Model: 2000-1001-00
$29,900.00

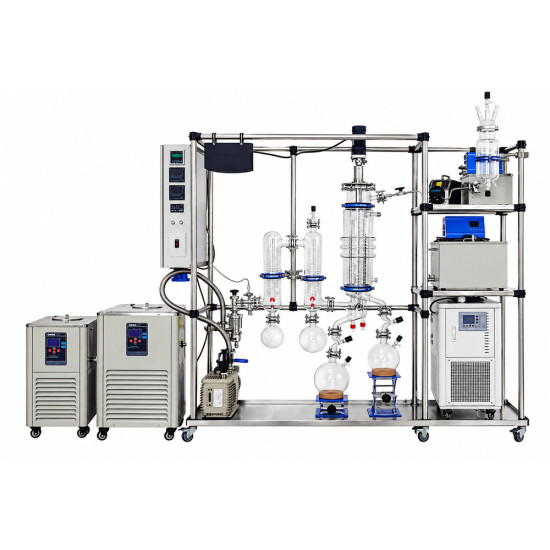

Short-Path Molecular Distillation System | Enhanced
Cold-Trap Configuration
Configuration schematic from the supplied English manual
PRODUCT OVERVIEW

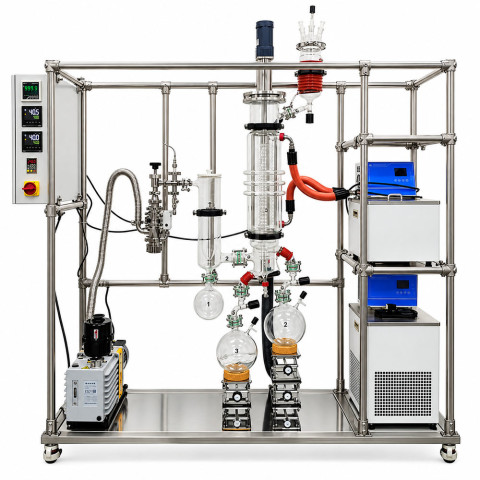

FMD-B builds on the FMD-A layout with an
additional external refrigerated condenser/cold-trap circuit shown on the
configuration drawing. It combines a short-path evaporator, external condenser,
separate temperature-control equipment, collection flasks and vacuum pumping.
CONFIGURATION HIGHLIGHT
The schematic includes a separate −20°C to
room-temperature cooling module for the additional condenser/cold-trap section.
APPLICATIONS
Designed for laboratory separation work
where additional vapor condensation and cold-trap temperature control are
useful. The auxiliary cooling system is shown independently of the main
evaporator thermal-control circuits.
AVAILABLE SIZES & TECHNICAL
SPECIFICATIONS
|
Model |
Area (m²) |
Inner Ø (mm) |
Rate (L/h) |
Max rpm |
|
FMD-60 |
0.06 |
60 |
0.1–2.0 |
450 |
|
FMD-80 |
0.10 |
80 |
0.3–4.0 |
450 |
|
FMD-100 |
0.15 |
100 |
0.5–6.0 |
450 |
|
FMD-150 |
0.25 |
150 |
1.0–8.0 |
450 |
|
FMD-200 |
0.35 |
190 |
2.0–15.0 |
300 |
|
FMD-230 |
0.50 |
220 |
3.0–25.0 |
300 |
Technical notes: 316 stainless steel or borosilicate
glass 3.3; ultimate system pressure 0.001 mbar. Operating temperature up to
300°C. Values and performance depend on the processed material. Custom sizes
available.
Source:
MolecularDistillationEnglishManual (FMD/TFE Series), pp. 3–8. Schematics show
possible system configurations; included accessories must be confirmed for each
quotation.
Specifications & configuration
| Model | 2000-1001-00 |
|---|---|
| Manufacturer | REACWARE |
| Material (from Product Description) | G3.3 Borosilicate Glass |
Select the configuration above to check the available combination and price.
